Portable DC24v MiNi Peak Hold Weighing Indicator Controller High Sampling Frequency 1280Hz

Brand Name : Supmeter

Model Number : BST106-B60S[L]]

Certification : CE

Place of Origin : CHINA

MOQ : 1 unit

Price : 80USD PER UNIT

Payment Terms : T/T

Supply Ability : 1000 UNITS PER MONTH

Delivery Time : 3 WORKING DAYS

Packaging Details : Carton Packing

Peak Value : Display Holding

Material : Steel

Sampling Frequency : 1280Hz

Commnication : RS232 or Rs485

Weight : 0.5kg

Contact Now

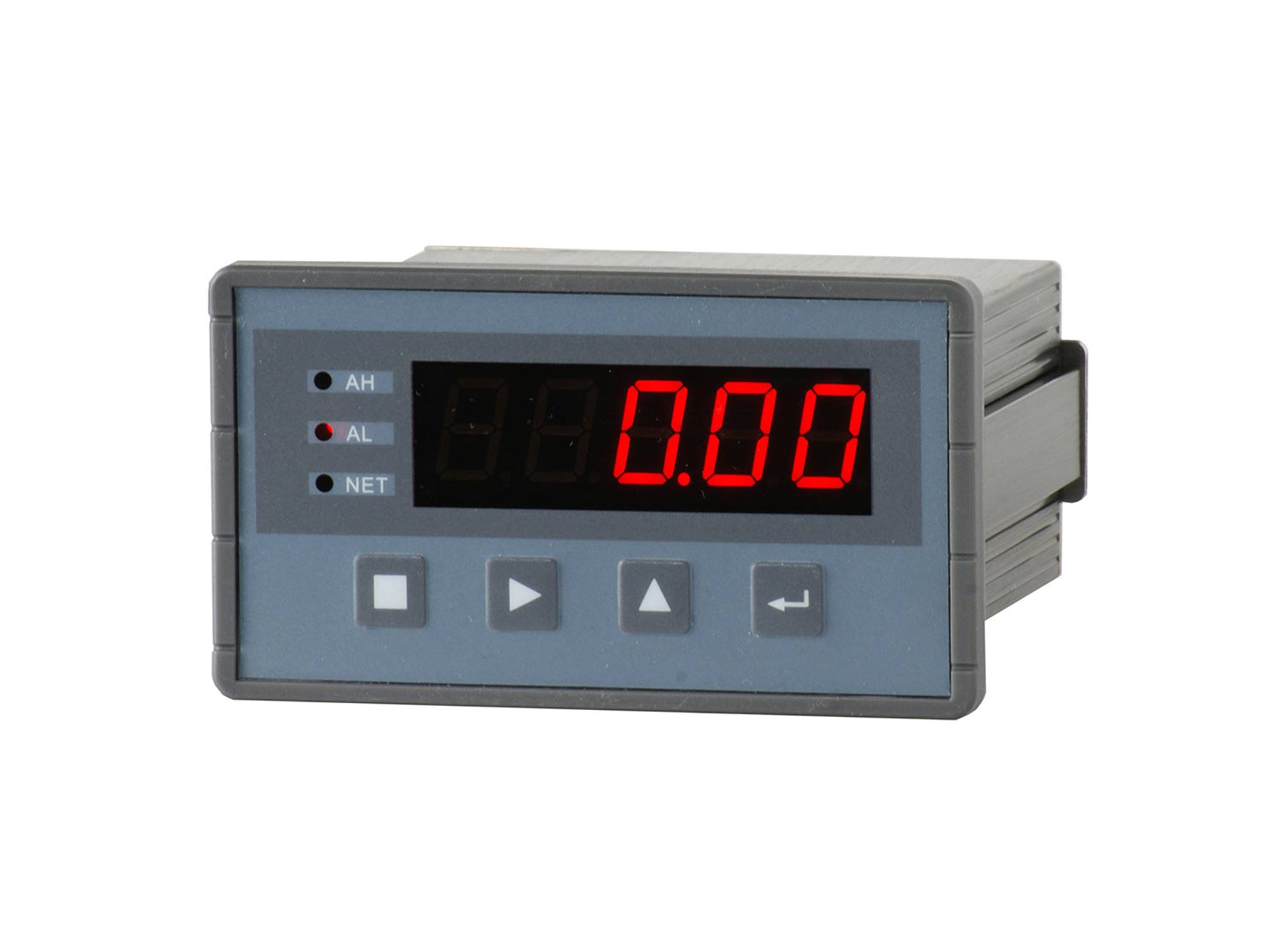

MiNi Peak hold Weighing Controller With LED Display And Setpoints And AO[4-20]mA

Main Applications

  1.  Weight/Force Display.
  2.  Peak Value Detection / Display Holding.
  3.  Weight/Force Signal AO/Digit Transmission.
  4.  Setpoint DO Output.
  5.  Weight/Force Limit DO Alarm Mode.
  6.  Weight/Force Increment DO Output Mode.
  7.  Weight/Force Decrement DO Output Mode.
  8.  Weight/Force Section DO Output Mode.Portable DC24v MiNi Peak Hold Weighing Indicator Controller High Sampling Frequency 1280Hz

Main Features:

1 EMC design with high anti-jam for industrial environment.
2 DC24V power input with reverse polarity protection.
3 32-bit ARM CPU with 48MHz clock & high arithmetic speed
4 5 Red LED digital tubes for English&digit display.
5 24-bit ∑-△ADC with internal resolution 1/1,000,000.
6 High sampling frequency 1280Hz.
7 Optional Special Anti-vibration Digital Filtering Algorithm for
precise weighing, stable display and rapid response.
8 Auto Zero Tracking.
9 Load Calibration, Data Calibration & Segmenting Correction.Definable AO/COM[Communication Port].

Portable DC24v MiNi Peak Hold Weighing Indicator Controller High Sampling Frequency 1280Hz​

Technical Specifications

  1. Power Supply: DC24V±20%, Max. 5W.
  2.  Loadcell Excitation Voltage/Current: DC5V/120mA.
  3.  8 Loadcells[350Ω] connectable.
  4.  Transmitter Excitation Voltage/Current: DC12V/100mA.
  5.  Optional weighing/force input signal mV, V and mA.
  6.  【mV】Signal Input Range: 0~19.5mV.
  7.  【V】Signal Input Range: 0~2.5V, 0~5V, 0~10V.
  8.  【mA】Signal Input Range: 0~20mA.
  9.  2 Normally open/closed Relays [DO]: AC250V/DC24V, 1A.
  10.  1 Analog Signal Output [AO]: 0~20mA, 0.05%FS.
  11.  COM1: RS232.
  12.  COM2: RS485.
  13.  Connect Host IPC[Modbus] & Remote Display.
  14.  Outline Size [W×H×D]: 107 × 60 × 100 mm.
  15.  Panel Cut-out Size [W×H]: 94 × 47 mm.
  16.  Operating Temperature: -25℃～+45℃.
  17.  Protection Level of Front Panel: IP65.
  18.  Accuracy Grade: III.
  19.  Verification Accuracy: 0.03%.
  20.  Static Weighing / Force Measuring Accuracy: 0.2%~0.5Portable DC24v MiNi Peak Hold Weighing Indicator Controller High Sampling Frequency 1280Hz
